• Easy to use - no switches or settings |
|
| • Quickly and easily identify weak or failing batteries |
|
| • Patented high accuracy Pulse Load Test |
|
| • Test BA-5372/U lithium battery |
|
| • Ideal for battery management and cell matching |
|
| • Made in U.S.A. |
|
 |
|
|
|

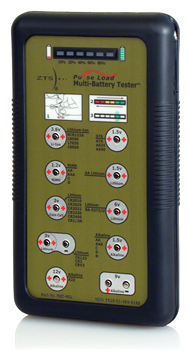

The ZTS MBT-MIL Multi-Battery Tester™ (MBT-MIL) provides a comprehensive means of testing the state of charge or state of power for more than 30 battery types, including the BA-5372/U 6-volt lithium battery. This microprocessor-controlled instrument is designed to test popular primary (non-rechargeable) and rechargeable batteries using a patented, high accuracy pulse load test. After a fully automatic test cycle, percentage of remaining battery capacity is indicated on the LED bar display. Battery types are clearly labeled next to appropriate contacts. Negative test lead/probe conveniently stores in seam at side. There are no switches or settings, and test results are easy to understand. Test NiMH, Li-Ion, alkaline, lithium, coin cell, button type and more. Uses 4AA batteries (not included) Made in U.S.A. Patents 6,823,274 and D569285.
|
|
 |
|
|
|
|
|
|
|
• Battery management |
• Security |
|
| • Safety |
• Life support |
|
|
• Quality Assurance |
|
| • Electronics |
|
|
• Communications |
|
| • Service |
|
|
• Medical appliances |
|
| • Rechargeables |
|
| • Remote devices |
|
| • Mission readiness |
|
| • Cell matching |
|
| • Office |
|
| • Scientific |
|
| • Inspection |
|
 |
|
|
|
P/N: MBT-MIL |
|
| NSN: 6625-01-494-9163 |
|
| Testing capability (battery list): |
|
|
3.6v Li-Ion rechargeable [RCR123A, 18500, 17650, 18650] |
|
| 1.5v button cell [S76, A76, A625, A640, LR44, 357, 303] |
|
| 1.2v NiMH/NiCd rechargeable [AA, AAA, C, D] |
|
| 1.5v lithium [AA L91, AAA L92] |
|
| 3v lithium coin [CR1616, CR1620, CR2016, CR2025, CR2320, CR2032, CR2430, CR2450, 58L, 1/3N] |
|
| 6v lithium [BA5372/U] |
|
|
| 3v lithium cylindrical [CR123, CR2, CRV3] |
|
| 1.5v alkaline [AA, AAA, C, D, N] |
|
| 12v alkaline [A23] |
|
| 9v alkaline & carbon zinc |
|
| Power (internal): 4 AA batteries |
|
|
| Display: 6 LEDs - colors green, yellow, red |
|
| Pulse Load: magnitude varies according to battery type |
|
| Operation: microprocessor-controlled test cycle |
|
| Test duration: 2-3 seconds, varies according to battery type |
|
| Contact terminals: solid brass, nickel-plated |
|
| Dimensions: 8 x 4.5 x 1.25 inches |
|
| Weight: approx. 14.5 oz. / 400g (without batteries) |
|
| UPC: 856777000183 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
